How to Choose Crown Blocks for Drilling in 2026?

Choosing Crown Blocks for drilling in 2026 means matching equipment to the rig, the drilling line, and real operating conditions. The IEA’s World Energy Investment 2024 estimated that upstream oil and gas investment would reach about $570 billion that year, a 7% increase. That spending highlights the value of selecting lifting equipment for reliable service, not just its purchase price. Small details matter. A block’s rated capacity must suit the rig’s design and expected loads. Sheave diameter, groove profile, and drilling-line size must also work together. Mismatches can accelerate rope wear and complicate maintenance.

This guide examines practical selection factors, including reeving configuration, bearing design, lubrication access, corrosion exposure, and inspection needs. API Specification 8C is an important reference for drilling and production hoisting equipment, but buyers should confirm the applicable edition and project requirements with qualified engineers and the manufacturer. Review equipment records, certification, load ratings, and service support before comparing quotations. A catalogue figure cannot tell the whole story. Neither can a low price. Actual duty cycles, weather, maintenance capacity, and compatibility with existing rig equipment all matter. The uncomfortable part is that site data may be incomplete; assumptions should be identified, checked, and documented rather than quietly treated as facts. With those limits in view, operators can make a more defensible choice for safety, uptime, and lifecycle cost.

Table of Contents [Hide]

1 Understanding Crown Blocks and Their Role in a Drilling Rig

2 Matching Block Capacity to Rig Loads and Operating Conditions

3 Comparing Sheave Size, Bearings, and Wireline Compatibility

4 Evaluating Safety Features, Materials, and Maintenance Needs

5 Verifying Standards, Supplier Support, and 2026 Project Requirements

Understanding Crown Blocks and Their Role in a Drilling Rig

How to Choose Crown Blocks for Drilling in 2026?

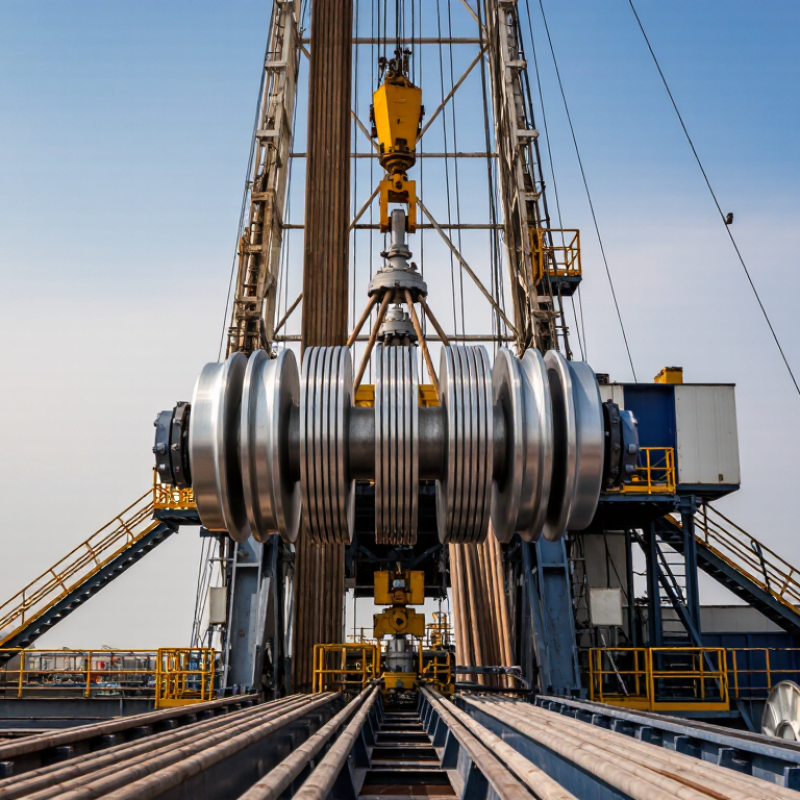

A crown block is the fixed assembly of sheaves mounted at the top of a drilling rig’s derrick or mast. Drilling lines pass over these grooved wheels and connect with the traveling block below. Together, the blocks help raise and lower the drill string and other heavy equipment. The crown block also transfers lifting forces into the rig structure, so its rated capacity must match the hoisting system and the rig’s operating plans.

Choosing one involves more than checking a load rating. Confirm the design suits the drilling line’s diameter, sheave grooves, reeving arrangement, and expected duty cycle. Consider the rig’s height, available clearance, and exposure to weather, dust, and vibration. Review inspection access, lubrication needs, and maintenance records with qualified personnel. A tidy specification sheet can still leave practical questions unanswered, especially about wear and access at height. Verify compatibility against current engineering documents rather than relying on appearance or a familiar setup.

Tips: Compare the crown block’s capacity with the complete hoisting system, not in isolation. Check sheaves and guards for damage or unusual wear during scheduled inspections. Record findings. Have a qualified rig engineer review any change in line size, reeving, or operating load.

Matching Block Capacity to Rig Loads and Operating Conditions

How to Choose Crown Blocks for Drilling in 2026?

Match crown-block capacity to the rig’s maximum planned hook load, not its nominal class. Start with the approved load sheet, including the heaviest drillstring, casing string, traveling equipment, and planned overpull. API Specification 8C, covering drilling and production hoisting equipment, provides an industry reference for equipment ratings, design, and testing. ISO 13535 is another relevant technical reference. Check that the selected rating fits the complete hoisting system, not just the block. Small details matter.

For example, a load sheet showing a peak of 360 short tons leaves only 40 tons of gross difference with a 400-short-ton-rated block. That difference is not, by itself, a verified safety margin. Confirm the rating against reeving configuration, sheave compatibility, line pull, mast and substructure limits, and any applicable derating. Then consider the actual site: cold starts can affect lubrication, while abrasive dust and salt spray accelerate wear. Maintenance records and inspection findings should influence selection too. A rating can look adequate on paper, yet operating conditions may change the usable capacity. Recheck assumptions when the well plan or rig configuration changes.

Choosing Crown Block Capacity: Match the Rig’s Peak Hook Load

These illustrative examples apply a 10% planning allowance to peak hook load; this is not a universal design rule or an equipment rating. Actual selection must account for the rig’s reeving arrangement, dynamic loads, operating conditions, and applicable manufacturer and engineering requirements. Confirm that the complete hoisting system is rated for the intended service.

Comparing Sheave Size, Bearings, and Wireline Compatibility

For 2026 crown-block selection, treat sheave diameter as a fatigue-control choice, not merely a clearance issue. API RP 9B provides wire-rope guidance using the sheave-to-rope diameter ratio, or D/d. Check its current recommendations against the rope’s construction and service. A groove that is too tight can pinch strands. Too wide, and the rope may wander. Measure the installed line, not just its nominal catalog size.

Match bearing capacity to the block’s rated load, reeving arrangement, and expected operating speed. API Spec 8C sets design and testing requirements for drilling hoisting equipment, but a job-specific load check is still essential. Request static and dynamic ratings, lubrication intervals, seal limits, and inspection access. Heat and drilling grit are real constraints. On paper, bearing life often looks cleaner than it does offshore.

For wireline work, confirm line diameter, rope type, groove profile, fleet angle, and guard clearance before installation. Slickline or braided cable may not track like drilling line. Check the cable’s bend-radius guidance against the sheave groove gauge; a matching nominal diameter alone is not enough. Record groove wear and bearing condition during inspections. The best fit is not always the largest sheave that clears the mast. Sometimes the maintenance plan changes the answer.

Evaluating Safety Features, Materials, and Maintenance Needs

How to Choose Crown Blocks for Drilling in 2026?
Evaluating Safety Features, Materials, and Maintenance Needs

Choosing a crown block starts with the rig’s documented load limits, line size, and operating conditions. Check rated capacity against the complete reeving arrangement, not one component alone. Inspect guards, retainers, and attachment points for secure fit and visible damage. A smooth-running sheave does not prove the assembly is safe. Confirm inspection criteria with qualified personnel and the equipment documentation. Details matter.

Tips: Before installation, record groove condition, bearing play, fastener security, and corrosion. Use the specified lubricant and interval; excess grease can attract grit. Keep a log of dates, findings, and repairs. Investigate unusual vibration, noise, heat, or wire-rope tracking. Don’t guess.

Choose materials for the load, environment, and maintenance access. Properly specified steel can suit demanding service, while corrosion-resistant alloys may help in wet areas; neither is automatically best. Match groove geometry to the rope manufacturer’s requirements, since poor contact can accelerate wear. During scheduled checks, look for cracks, flat spots, uneven wear, loose hardware, and rough bearings. Replace parts that exceed documented limits, rather than relying on appearance alone. Dust, salt spray, and frequent cycling change what deserves attention. Checklists may not reflect every rig, and maintenance records are sometimes incomplete. Improve the records before small defects become difficult to trace.

How to Choose Crown Blocks for Drilling in 2026? — Evaluating Safety Features, Materials, and Maintenance Needs

Evaluation Dimension	What to Check	Selection Guidance	Safety and Maintenance Implications
Rated capacity	Documented rated load, design documentation, identification markings, and compatibility with the rig’s hoisting system.	Select a block rated for the planned service and compatible with the derrick, traveling block, drilling line, and approved hoisting arrangement. Confirm the rating with the equipment documentation; do not infer it from appearance.	Remove from service if markings are unreadable, documentation is missing, or the equipment has been overloaded or subjected to an abnormal impact pending qualified evaluation.
Sheave count and reeving layout	Number of sheaves, reeving path, line routing, and compatibility with the intended drilling-line arrangement.	Match the block configuration to the rig’s approved reeving plan. Check that the line can run through the sheaves without cross-over, binding, or unintended contact.	Incorrect reeving can create uneven loading, accelerated rope wear, or unsafe operation. Verify the arrangement after installation and any reeving change.
Sheave diameter and grooves	Sheave diameter, groove profile, and fit for the specified drilling-line diameter and construction.	Use the rope and block manufacturers’ compatibility guidance and the approved system design. There is no single sheave-to-rope ratio suitable for every rope and application.	Inspect grooves for wear, cracking, corrosion, and damage. Use an appropriate groove gauge where specified; replace or repair components that exceed the applicable wear limits.
Frame and sheave materials	Material specifications, heat treatment where applicable, fabrication records, and suitability for the operating environment.	Look for traceable material and manufacturing documentation. Forged or properly manufactured steel components are commonly used, but the material and process must meet the equipment design requirements.	Check for corrosion, deformation, cracks, and damaged protective coatings. Any repair or welding should follow approved procedures and be evaluated by qualified personnel.
Bearings and lubrication	Bearing type, lubrication method, seals, grease points, and access for inspection or servicing.	Choose an arrangement that suits the rig’s duty cycle and service environment, with clear lubrication instructions and practical access for maintenance.	Follow the specified lubricant and service procedure. Investigate abnormal heat, noise, vibration, rough rotation, leakage, or excessive play rather than continuing operation.
Guards and rope retention	Sheave guards, line-retention features, and protection against the drilling line leaving the sheave groove.	Confirm guards and retention devices are present, correctly fitted, and compatible with the reeving arrangement. They should not obstruct inspection or interfere with rope movement.	Inspect for looseness, missing fasteners, distortion, and contact with the moving line. Do not operate with required guards or retention features removed or damaged.
Structural inspection access	Visibility and access to welds, pins, attachment points, sheave hubs, and other critical areas.	Prefer a design that allows the required checks to be performed without unsafe access or unnecessary disassembly.	Use inspection methods and intervals specified by the manufacturer and site procedures. Arrange qualified nondestructive examination when required by the inspection plan or when damage is suspected.
Corrosion and operating environment	Exposure to saltwater, drilling fluids, abrasive solids, temperature extremes, and outdoor storage conditions.	Specify suitable coatings, seals, and materials for the actual environment; verify that these do not conflict with inspection or maintenance requirements.	Clean and inspect exposed areas regularly. Pay particular attention to crevices, fasteners, lubrication points, and surfaces where corrosion could conceal damage.
Inspection and maintenance plan	Manufacturer instructions, site inspection requirements, maintenance records, and criteria for removing equipment from service.	Before purchase, confirm that inspection procedures, spare parts, and qualified service support are available for the expected operating location.	Perform pre-use visual checks and scheduled documented inspections according to the manufacturer’s instructions and applicable site requirements. Reassess after overload, impact, unusual vibration, or suspected damage.
Standards and documentation	Applicable regulatory and industry requirements, equipment certificates, inspection history, and traceability records.	Confirm which requirements apply to the specific rig and jurisdiction. API Specification 8C is an industry specification for drilling and production hoisting equipment; verify the applicable edition and equipment scope with the responsible engineering team.	Keep certificates, inspection reports, repairs, and service records available for review. A standards reference does not replace equipment-specific design verification or inspection.

Selection note: Final acceptance should be based on the crown block’s documented design, the rig’s approved hoisting-system calculations, manufacturer instructions, and applicable regulations and site procedures. Inspection intervals and allowable wear limits are equipment- and service-specific.

Verifying Standards, Supplier Support, and 2026 Project Requirements

For a 2026 drilling project, verify the crown block against the equipment specification and the standards named in the contract. Check the rated load, sheave diameter, groove profile, and compatibility with the planned drilling line. Request current certificates, material traceability, and inspection records; a rating alone does not show how the assembly was assessed. Ask for evidence. Confirm that the documents match the exact model and configuration being offered, not a similar unit in a catalog. Standards and project requirements can change, so have the responsible engineer confirm the applicable editions before purchase.

Supplier support deserves the same scrutiny as the hardware. Ask who will review installation, provide operating and maintenance instructions, and respond if inspection reveals unusual wear. Confirm spare-part availability and realistic delivery times, especially when a shutdown window is fixed. Details matter. I have seen planning discussions focus heavily on lifting capacity while overlooking access for routine inspection. That gap can become expensive. For 2026, compare the supplier’s documentation with project-specific demands, including operating environment, expected duty cycle, maintenance access, and commissioning schedule. If an answer is vague, record the uncertainty and resolve it before approval.
